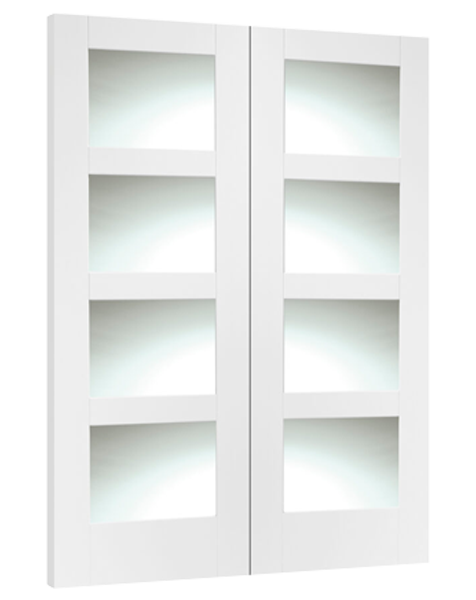

Shaker Internal White Primed Rebated Door Pair with Clear Glass

• Engineered construction for added strength, stability and performance
• Double coated and ready for final finishing
• This will require a rebated door latch
• FSC Certified product with full chain of custody
• This will require a rebated door latch
• Lipping allowing for 6mm to be trimmed off the top and bottom of the door to a maximum reduction of 12mm in height.

• Family - Shaker
• Finish - White Primed
• Material - MDF
• Use - Double door,Glazed
• Colours by XL - Yes
• Colour Description - White
• Texture - Smooth
• Core Construction Type - Glass
• Glazing - Yes
• Glazing Type - 4mm safety glass
• Glazing Finish - Clear
• Glazing Safety Specifications - Toughened
• Glazing Certifications - (2013 version): Part K amalgamates the now defunct Approved Document N,The glass is toughened to either BS6206 / BS 6262 Part 4 or BS EN12150 and BS EN 12600 as stipulated in Approved Document K of the Building Regulations
• Beading - Yes
• Beading Material - Poplar
• Glue Resin - D3
• Door Handing - Reversible
• Veneer Thickness (mm) - 3

Door Handing - Reversible

Trimmable - Yes

Overall Total Trimming Width (mm) - 12

Overall Trimming Height (mm) - 12

Maximum Trimming From Top (mm) - 6

Maximum Trimming From Bottom (mm) - 6

Maximum Trimming From Each Side (mm) - 6

Trimming Notes - Rebated door pairs are not to be trimmed on the rebated edges.

Recommended Latch Size - 65mm

Door Preparation - Light sanding using 240g sand paper

Number of Hinges Required6

Type of Hinge Required - 3" Butt

Recommended Finish - Good Quality paint suitable for engineered, veneered timber doors utilising D3 adhesive beneath the veneer.

Fitting Instructions

HANDLING AND STORAGE - Doors should always be stored flat, ideally in the same room where they are to be installed. Protect the door from damp and dirt by leaving it in its protective packaging until ready for finishing and fitting. Doors should not be fitted where extremes of temperature or humidity may occur, e.g. in a newly plastered room or near a sauna. In new build situations the doors should only be fitted when the property is ready for final decoration.

INSTALLATION - When trimming a door to fit, 6mm can be removed from the top and bottom of the door to a maximum reduction of 12mm in height. 6mm can be removed from the width of each door from the hinge edge only, and no reduction can be made to the rebated edge: allowing for a maximum reduction of 12mm in width from the entire door pair. Any reduction must be removed evenly from each edge of the door, e.g. to trim your door by 8mm in width, remove 4mm off each side. The protection film on the glass should not be removed until painting has been completed. Three hinges should be used to hang all doors, to prevent warping or bowing. Latches and locks should not be fitted adjacent to door mid-rails where the joint may be compromised. All hardware screw holes should be pre-drilled to prevent splitting of the timber.

FINISHING - White Primed doors are double coated and ready for final finishing after a light sanding using a fine grade sandpaper (grit number 240 or 320). All timber surfaces should be fully finished. Failure to treat all the timber surfaces may lead to excessive changes in moisture content which will cause the timber to shrink or swell, possibly causing splits and distortion. Please refer to the finish manufacturer’s application instructions for further details. Use masking tape when finishing the glazed doors to ensure that the finish does not get on the glass. Once you have completed finishing the door, remove the masking tape and the protective film from the door. To remove the film simply take a craft knife and cut around the entire glass aperture, ensuring the corners have been cut. Finally, peel off the film from the glass surface to leave a smooth finish.

DO - Use a good quality paint suitable for veneered doors. Apply coats equally to all faces and edges including the top and bottom of the door. Use the same number of coats for lock, latch and hinge cut-outs.

DO NOT - Use oils, wax, dyes or preservative treatments Use thinned/mixed paints or stains. Mix incompatible products, e.g. paint on one door face and stain on the opposite face.

MAINTENANCE - To prolong the natural beauty of your door regularly clean the surface with a damp cloth. If the finish appears to fade after a few years simply apply a single coat of finish to renew its lustre.

• FSC Certified - Yes
• FSC Certification Number - SA-COC-001476
• Manufacturers Warranty - Yes
• Full or Limited Warranty - Limited
• Warranty Length - 10 Years
