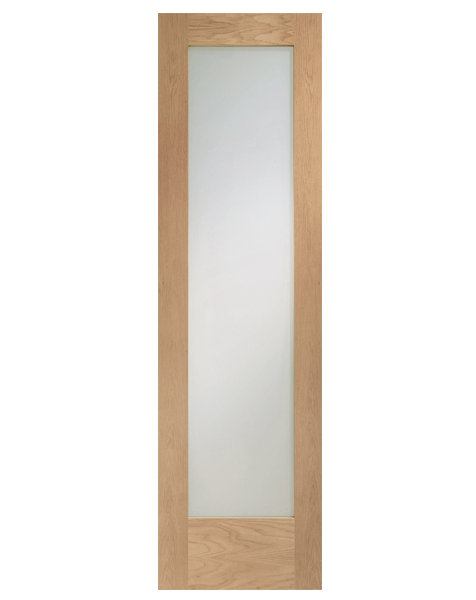

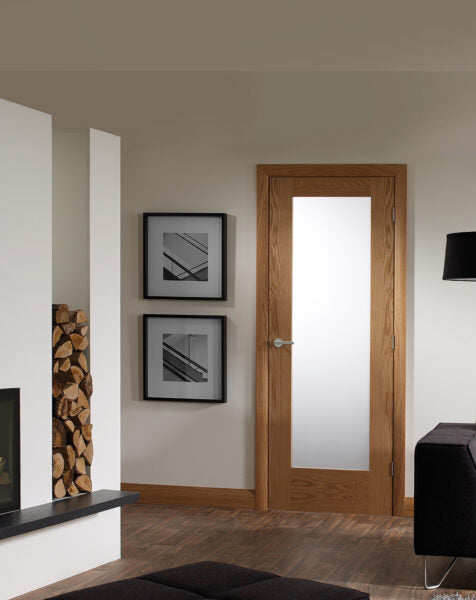

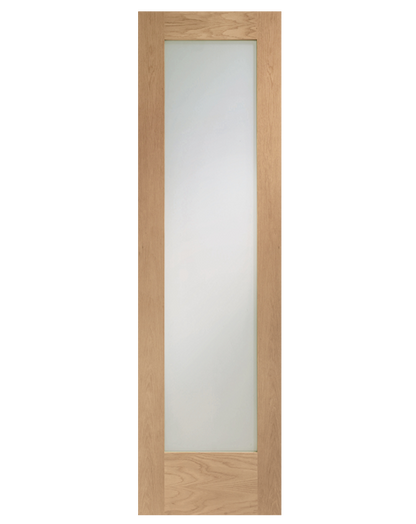

Pattern 10 Pre-Finished Internal Oak Door with Obscure Glass

Pattern 10 Pre-Finished Internal Oak Door with Obscure Glass

Regular price £225.46 GBP
Regular price £125.00 GBP Sale price £225.46 GBP
Sale Sold out
VAT Included.

Installation Required?

If you require this door to be installed, please do contact us before placing your order by clicking here!

Integrated with a large central obscure glass pane, our Fully-Finished Pattern 10 Glazed Door provides a certain degree of privacy whilst also allowing for natural light to flow between rooms seamlessly.

Supplied fully-finished, this door is ready to be installed and does not require decoration.

View full details

ADDITIONAL INFORMATION

FEATURES

  • Engineered construction for added strength, stability and performance
  • A fully finished door provides a consistent look whilst removing the time and hassle required to finish a door
  • A-Grade American White Oak Veneer
  • FSC Certified product with full chain of custody
  • High screw holding strength to ensure secure fitting of hinges, latches and handle
  • Real Oak Lipping allowing for 6mm to be trimmed off all edges of the door

PRODUCT SPECIFICATIONS

  • Family - Pattern 10
  • Finish - Pre-Finished
  • Material - Oak
  • Use - Glazed
  • Colour Description - Oak
  • Texture - Natural
  • Construction Material - Oak veneer
  • Core Material - Particleboard
  • Glazing - Yes
  • Glazing Type - 5mm safety glass
  • Glazing Finish - Obscure
  • Glazing Safety Specifications - Toughened
  • Glazing Certifications - (2013 version): Part K amalgamates the now defunct Approved Document N,The glass is toughened to either BS6206 / BS 6262 Part 4 or BS EN12150 and BS EN 12600 as stipulated in Approved Document K of the Building Regulations
  • Glue Resin - D3
  • Door Handing - Reversible
  • Lippings - Yes
  • Lipping Details - Lipped on all four sides
  • Lipping Material - Oak
  • Lipping Thickness Bottom (mm) - 11
  • Lipping Thickness Sides (mm) - 11
  • Lipping Thickness Top (mm) - 11
  • Veneer - Yes
  • Veneer Material - Solid white oak
  • Veneer Thickness (mm) - 0.6

INSTALLATION

Door Handing - Reversible

Trimmable - Yes

Overall Total Trimming Width (mm) - 12

Overall Trimming Height (mm) - 12

Maximum Trimming From Top (mm) - 6

Maximum Trimming From Bottom (mm) - 6

Maximum Trimming From Each Side (mm) - 6

Recommended Latch Size - 75mm

Door Preparation - Light sanding using 240 or 320 grit sand paper to cut outs and trimmed edges only

Number of Hinges Required - 3

Type of Hinge Required - 3" Butt

Recommended Finish - Good Quality Woodstain, paint or varnish suitable for engineered, veneered timber doors utilising D3 adhesive beneath the veneer.

Fitting Instructions

HANDLING AND STORAGE - Doors should always be stored flat, ideally in the same room where they are to be installed. Protect the door from damp and dirt by leaving it in its protective packaging until ready for finishing and fitting. Doors should not be fitted where extremes of temperature or humidity may occur, e.g. in a newly plastered room or near a sauna. In new build situations the doors should only be fitted when the property is ready for final decoration.

INSTALLATION - When trimming a door to fit, 6mm can be removed from each edge of the door to a maximum reduction of 12mm in both the height and width. Any reduction must be removed evenly from each edge of the door, e.g. to trim your door by 8mm in width, remove 4mm off each side. Three hinges should be used to hang all doors, to prevent warping or bowing. Latches and locks should not be fitted adjacent to door mid-rails where the joint may be compromised. All hardware screw holes should be pre-drilled to prevent splitting of the timber.

FINISHING - All fully finished doors will require any bare timber areas caused by trimming and hardware fitting, to be adequately treated before final fitting. Failure to treat all the timber surfaces may lead to excessive changes in moisture content which will cause the timber to shrink or swell, possibly causing splits and distortion. Any unfinished areas will require a light sanding prior to finishing using a fine grade sandpaper (grit number 240 or 320). Please refer to the finish manufacturer’s application instructions for further details.

DO - Use a good quality stain or varnish suitable for veneered doors Apply first coat of finish immediately after unpacking doors from protective packaging Apply coats equally to all faces and edges including the top and bottom of the door Use the same number of coats for lock, latch and hinge cut-outs.

DO NOT - Use oils, wax, dyes or preservative treatments Use thinned/mixed paints or stains Mix incompatible products, e.g. paint on one door face and stain on the opposite face.

MAINTENANCE - To prolong the natural beauty of your door regularly clean the surface with a damp cloth. If the finish appears to fade after a few years simply apply a single coat of finish to renew its lustre.

GUARANTEES & ACCREDITATIONS

  • FSC Certified - Yes
  • FSC Certification Number - SA-COC-001476
  • Manufacturers Warranty - Yes
  • Full or Limited Warranty - Limited
  • Warranty Length - 10 Years
