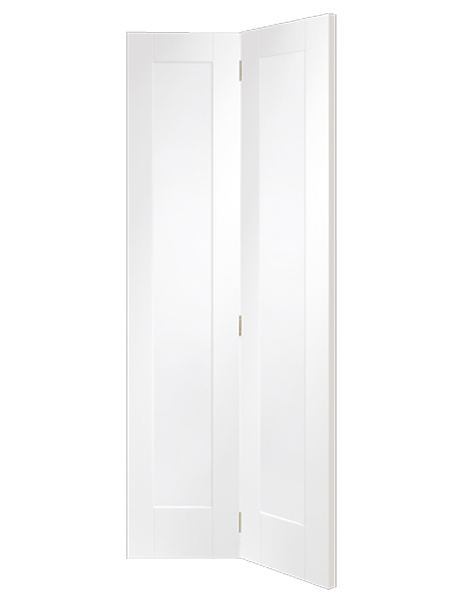

Pattern 10 Bi-Fold Internal White Primed Door

• Engineered construction for added strength, stability and performance
• White primed ready to paint at home in a colour of your choice
• Doors are supplied shorter to allow for the track and fittings included in the kit
• FSC Certified product with full chain of custody

• Family - Pattern 10
• Finish - White Primed
• Material - MDF
• Use - Bi-Fold
• Colours by XL - Yes
• Colour Description - White
• Texture - Smooth
• Core Construction Type - Engineered
• Glue Resin - D3
• Door Handing - Reversible
• Veneer Thickness (mm) - 3

Door Handing - Reversible

Trimming Notes - Bi-Folds are not suitable for trimming.

Door Preparation - Light sanding using 240g sand paper

Pre Drilled Holes - Yes

Recommended Finish - Good Quality paint suitable for engineered, veneered timber doors utilising D3 adhesive beneath the veneer.

Fitting Instructions

HANDLING AND STORAGE - Doors should always be stored flat, ideally in the same room where they are to be installed. Protect the door from damp and dirt by leaving it in its protective packaging until ready for finishing and fitting. Doors should not be fitted where extremes of temperature or humidity may occur, e.g. in a newly plastered room or near a sauna. In new build situations the doors should only be fitted when the property is ready for final decoration.

INSTALLATION - When trimming a door to fit, 6mm can be removed from each edge of the door to a maximum reduction of 12mm in both the height and width. Any reduction must be removed evenly from each edge of the door, e.g. to trim your door by 8mm in width, remove 4mm off each side. Three hinges should be used to hang all doors, to prevent warping or bowing. Latches and locks should not be fitted adjacent to door mid-rails where the joint may be compromised. All hardware screw holes should be pre-drilled to prevent splitting of the timber.

FINISHING - All fully finished doors will require any bare timber areas caused by trimming and hardware fitting, to be adequately treated before final fitting. Failure to treat all the timber surfaces may lead to excessive changes in moisture content which will cause the timber to shrink or swell, possibly causing splits and distortion. Any unfinished areas will require a light sanding prior to finishing using a fine grade sandpaper (grit number 240 or 320). Please refer to the finish manufacturers application instructions for further details.

DO - Use a good quality paint, stain or varnish suitable for veneered doors Apply to all unfinished, trimmed or cut-out areas Always apply the manufacturers recommended number of coats equally.

DO NOT - Use oils, wax, dyes or preservative treatments Use thinned/mixed paints or stains Mix incompatible products, e.g. paint on one door face and stain on the opposite face.

MAINTENANCE - To prolong the natural beauty of your door regularly clean the surface with a damp cloth. If the finish appears to fade after a few years simply apply a single coat of finish to renew its lustre.

• FSC Certified - Yes
• FSC Certification Number - SA-COC-001476
• Manufacturers Warranty - Yes
• Full or Limited Warranty - Limited
• Warranty Length - 10 Years
